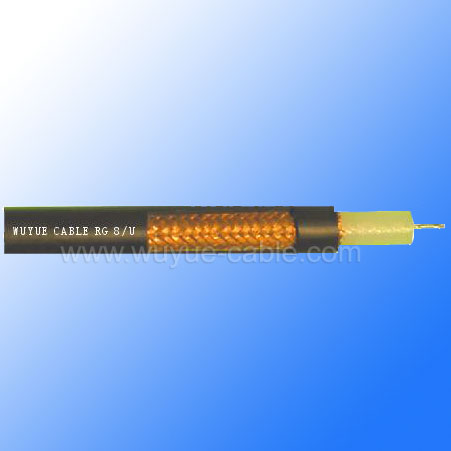

Cable(RG8)
1)2.74mmBare Copper+7.25mmFoamed PE+A/P/A(bonded)+80% Tinned Copper Braiding+10.24mmPVC
2) Customers' specifications are welcomed

Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
and double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 80, 96, 120,128 ,144 and more available;
6) Braiding coverage: Between 80- 97% available;
7) PVC jacket of Flame retardant ,UV, or UL available.

Characteristics:
Impedance: 50+/-2 Ohm
Velocity of Propagation: 85%
Capacitance: 24.8pF/ft
Attenuation: [@68 F. (20 C) ]  dB/100feet
5MHz:   0.4dB              900MHz: 4.1dB
10MHz:  0.5dB              1000MHz: 4.4dB
50MHz:  1.0dB              1500MHz: 5.5dB
100MHz: 1.4dB              1800MHz: 6.1dB
200MHz:  1.8dB             2000MHz: 6.5dB
400MHz: 2.6dB              2500MHz: 7.5dB
700MHz: 3.6dB              3000MHz: 8.3dB


Packing:
1) Packing Lengths:
305m/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
